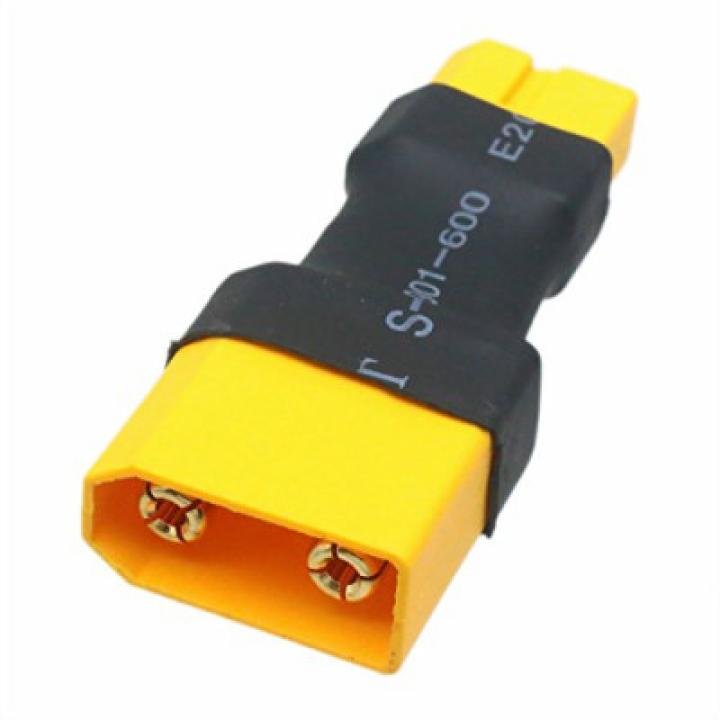

• Connector Type: XT90 Male to XT60 Female
• Material: Nylon housing with gold-plated copper contacts
• Wire Type: 12AWG or 14AWG flexible silicone wire (model-dependent)
• Wire Length: Typically 10–15 cm
• Current Rating: Up to 90A (XT90) / 60A (XT60) continuous
• Voltage Rating: Up to 500V
• Temperature Range: -20°C to 120°C
• Dimensions:
  • XT90 Male Body Length: ~29 mm
  • XT90 Male Width: ~18 mm
  • XT90 Male Height: ~13 mm
  • XT60 Female Body Length: ~21 mm
  • XT60 Female Width: ~17 mm
  • XT60 Female Height: ~8 mm
  • Pin Diameter: ~5 mm (XT90), ~3.5 mm (XT60)

Features:

• Gold-plated contacts for high conductivity and minimal resistance
• Flexible silicone wire for easy routing and installation
• Durable nylon housing for mechanical and thermal reliability
• Ensures safe, stable connections between XT90 batteries and XT60 devices
