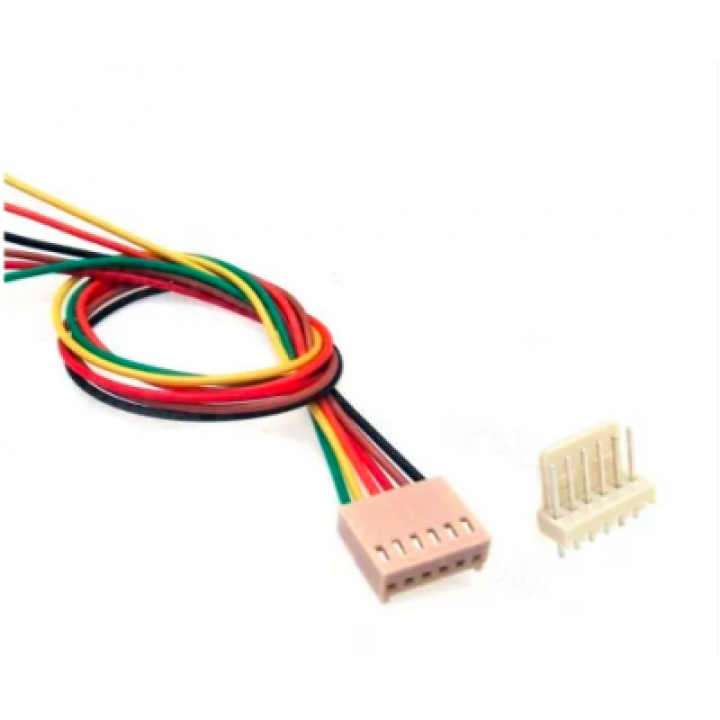

• Connector Type: JST XH Relimate (RMC)
• Pin Count: 6 pins
• Configuration: Male-Female pair
• Material: Nylon housing with tin-plated copper contacts
• Wire Type: 28AWG or 26AWG flexible wire (model-dependent)
• Wire Length: Typically 10–15 cm (varies by model)
• Current Rating: Up to 3A per pin
• Voltage Rating: Up to 250V
• Temperature Range: -20°C to 105°C
• Dimensions:
  • Pitch Between Pins: 2.54 mm
  • Connector Body Length: ~18–20 mm
  • Connector Body Width: ~4–5 mm
  • Connector Height: ~4–5 mm

Features:

• Reliable male-female connection for low-current electronics
• Flexible pre-attached wires for easy installation
• Durable nylon housing ensures insulation and mechanical stability
• Suitable for PCB, battery, and small electronic device connections
