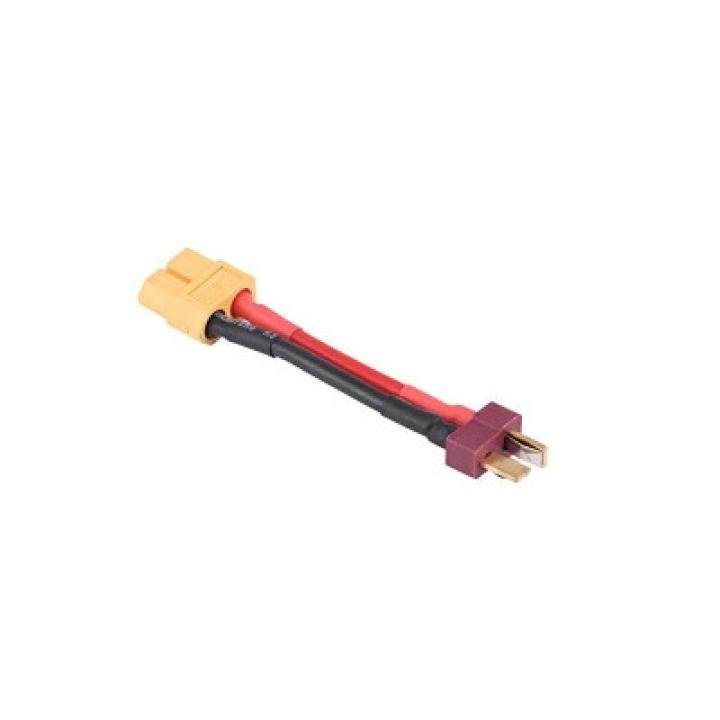

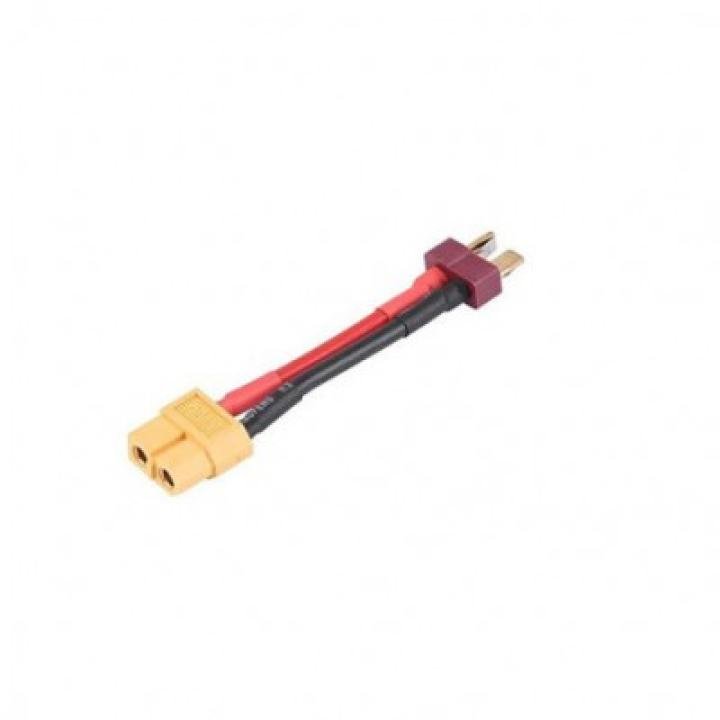

• Connector Type: XT60 Female to Male T-Connector
• Material: Nylon housing with gold-plated copper contacts
• Wire Type: 14AWG or 12AWG flexible silicone wire (model-dependent)
• Wire Length: Typically 10 cm
• Current Rating: Up to 60A continuous
• Voltage Rating: Up to 500V
• Temperature Range: -20°C to 120°C
• Dimensions:
  • Connector Body Length: ~21 mm (XT60), ~30 mm (T-Connector)
  • Connector Body Width: ~17 mm (XT60), ~16 mm (T-Connector)
  • Connector Height: ~8 mm
  • Pin Diameter: ~3.5 mm

Features:

• Gold-plated contacts for minimal resistance and high conductivity
• Flexible silicone wire for easy installation and routing
• Durable nylon housing ensures mechanical and thermal reliability
• Ideal for safe, stable connections between XT60 devices and T-Connector systems
