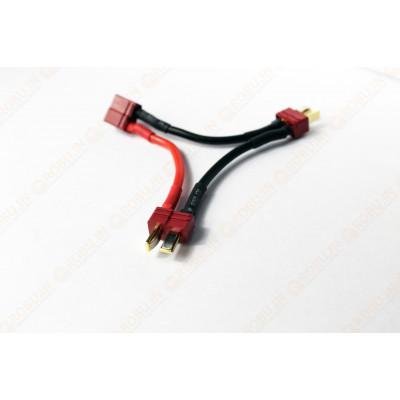

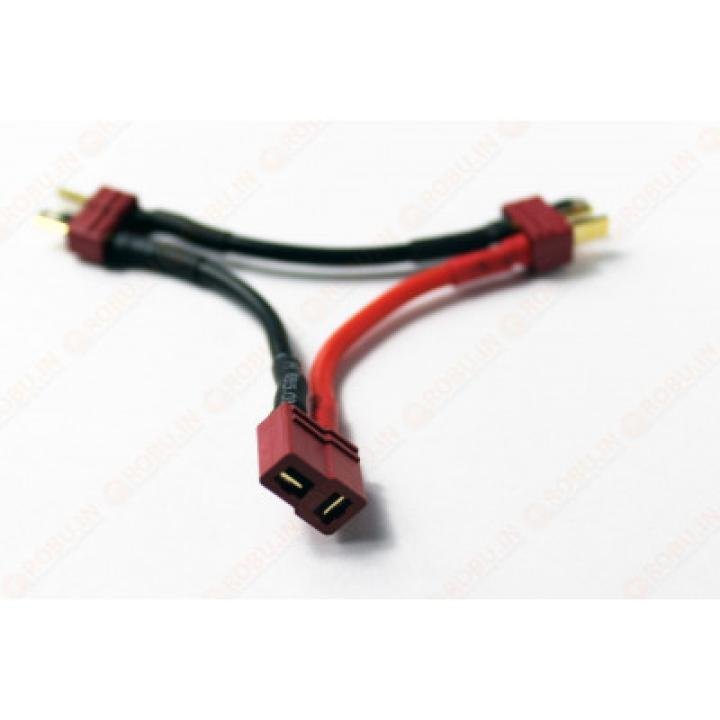

• Connector Type: T-Connector (Series pack lead)
• Configuration: Connects battery packs in series
• Material: Nylon housing with gold-plated copper contacts
• Wire Type: 14AWG flexible silicone wire
• Wire Length: Typically 10–20 cm (varies by model)
• Current Rating: Up to 60A continuous
• Voltage Rating: Up to 500V
• Temperature Range: -20°C to 120°C
• Dimensions:
  • Connector Body Length: ~30 mm
  • Connector Body Width: ~16 mm
  • Connector Height: ~8 mm
  • Pin Diameter: ~3.5 mm

Features:

• Gold-plated contacts for minimal resistance and high conductivity
• Flexible silicone wires for easy routing
• Durable nylon housing for mechanical and thermal reliability
• Ensures safe, stable series connections for battery packs
