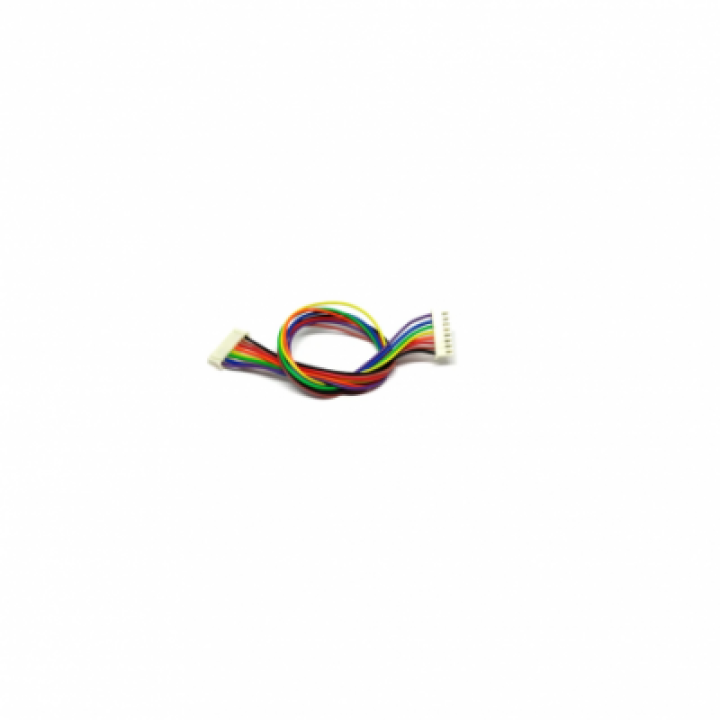

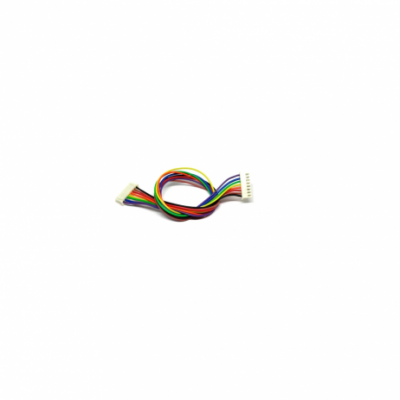

• Connector Type: JST XH Series
• Number of Pins: 8
• Gender: Female (both sides)
• Pitch (Pin Spacing): 2.5mm
• Rated Voltage: 250V AC/DC (max)
• Rated Current: Up to 3A
• Contact Resistance: ≤ 20mΩ
• Insulation Resistance: ≥ 1000MΩ
• Material: Plastic housing with metal contacts
• Wire Compatibility: AWG 26–28

Dimensions

• Pitch: 2.5mm
• Connector Length: ~22mm (8 pins × 2.5mm pitch + housing)
• Connector Width: ~5mm
• Connector Height: ~7mm
• Wire Length (if attached): Varies (typically 20–30cm in ready-made assemblies)
