Name: XT90 Male Connector with Housing
SKU: BL-02-BS-7979
Price: 61 INR
Availability: InStock

0 Reviews

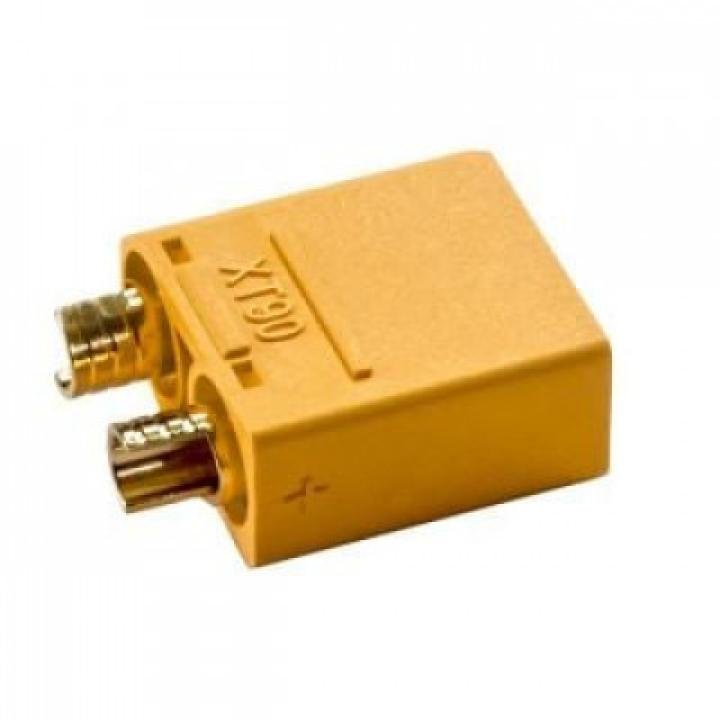

XT90 Male Connector with Housing

In stock

₹61.00

(Excluding IGST 18%)

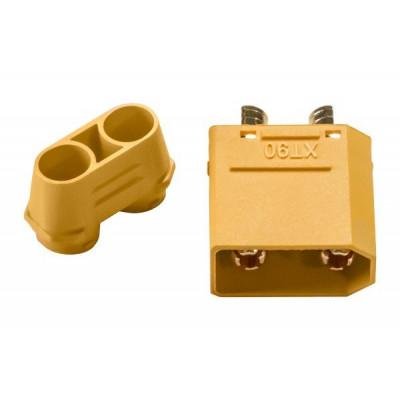

The XT90 Male Connector with Housing is a high-current connector designed for reliable power connections in RC models, drones, EV applications, and DIY projects. It is made of durable nylon material with gold-plated contacts, ensuring low resistance, high conductivity, and long-lasting performance. The housing provides safe insulation and easy handling during connections.

SKU:

BL-02-BS-7979

Categories:

Battery Connectors

Connector Type: XT90 Male with Housing
Material: Nylon + Gold Plated Copper
Current Rating: Up to 90A continuous
Max Voltage: DC 500V
Contact Resistance: ≤ 0.5mΩ
Temperature Resistance: -20°C to 120°C
Durability: > 1000 mating cycles
Safety: High-temp nylon housing prevents deformation

Dimensions (Approx):

Overall Length: 21 mm
Overall Width: 20 mm
Overall Height: 10 mm
Pin Diameter: 4.5 mm
Wire Size Compatibility: 8-10 AWG
