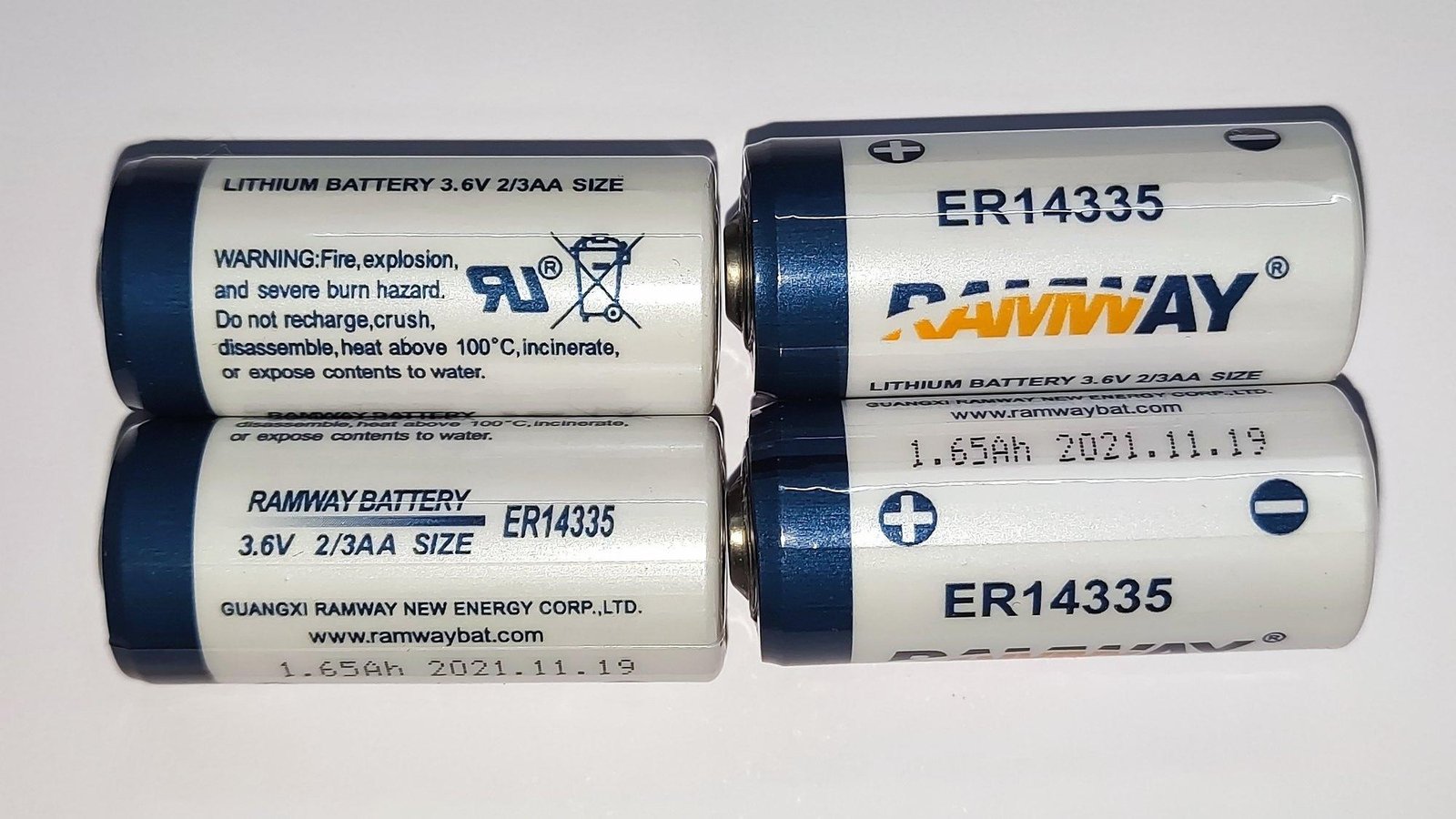

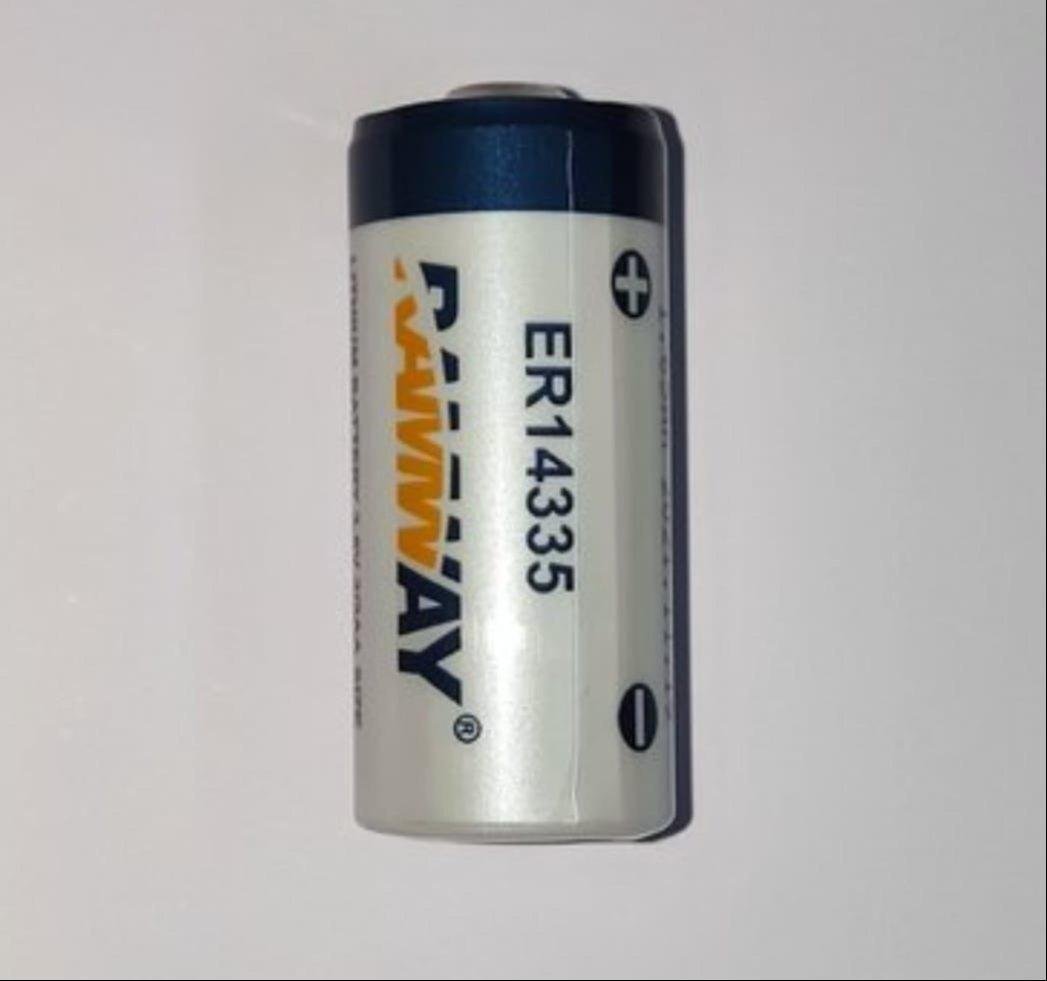

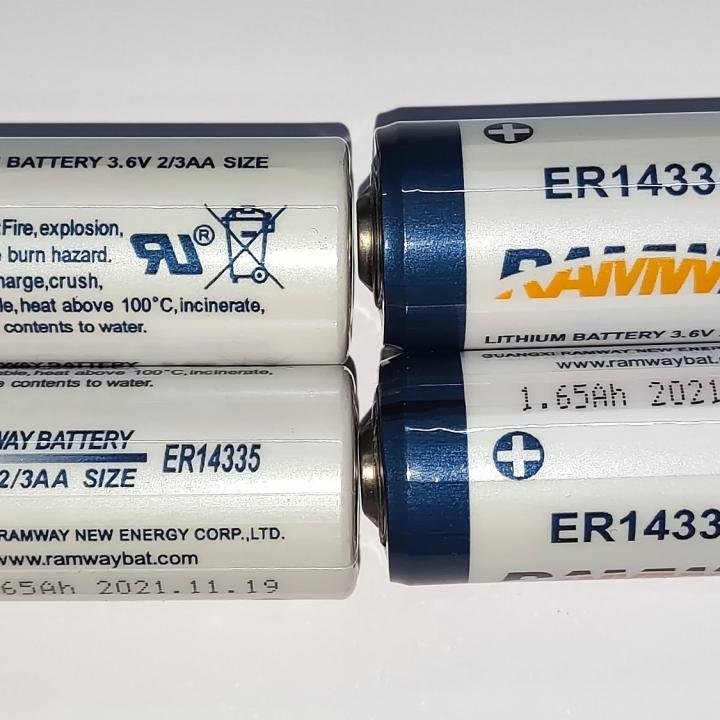

The Ramway ER14335 is a high-performance 3.6V lithium-thionyl chloride (Li-SOCl₂) battery with a compact cylindrical form factor. Designed for long-term use in low-drain and mission-critical devices, this battery offers high energy density, exceptional reliability, and a wide operating temperature range. Commonly used in utility meters, medical instruments, security systems, and industrial electronics, the ER14335 provides stable voltage and a low self-discharge rate, ensuring dependable power for years.
Brand:
| Specification | Details |
|---|---|
| Brand | Ramway |
| Model | ER14335 |
| Battery Type | Lithium Thionyl Chloride (Li-SOCl₂) |
| Voltage | 3.6 Volts |
| Nominal Capacity | Approx. 1200–1300 mAh |
| Max Continuous Current | Typically 10 mA |
| Max Pulse Current | Up to 100 mA |
| Shelf Life | Up to 10–15 years |
| Self-Discharge Rate | ≤1% per year at 25°C |
| Operating Temperature | –55°C to +85°C |
| Dimensions | 13.2 mm (Diameter) × 33.5 mm (Length) |
| Weight | Approx. 15 grams |
| Terminal Type | Flat or custom terminals |
| Applications | Utility meters, medical devices, memory backup, wireless sensors, security systems |
