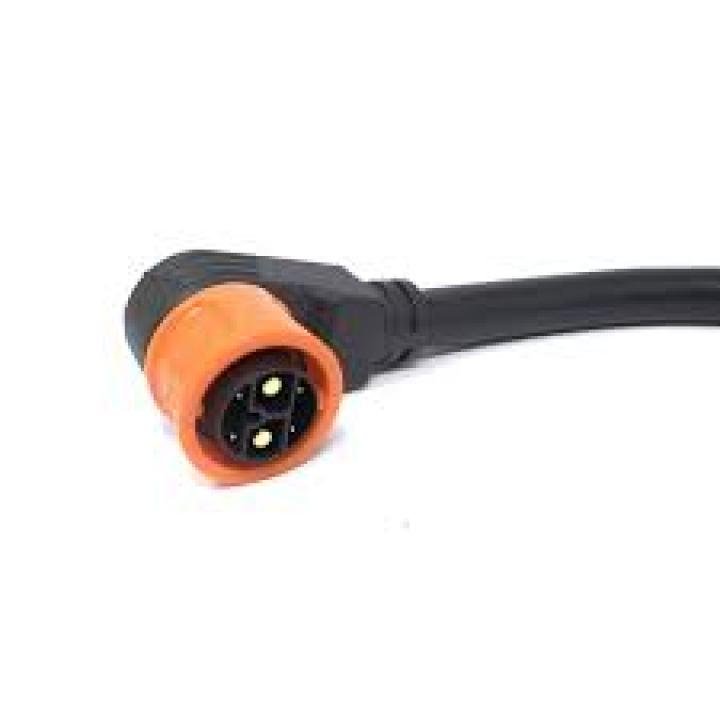

Orange 2+4 (WP) Male with Wire (5432)
The Orange 2+4 (WP) male connector with pre-attached wires is a waterproof 6-pin connector designed for secure power and signal connections. With 2 high-current pins and 4 low-current pins, it ensures reliable performance in automotive, LED, and industrial applications, even in harsh outdoor conditions.
Categories:
Battery ConnectorsModel: 5432
Connector Type: Male with wire leads
Configuration: 2 + 4 Pins (6-pin layout: 2 for power, 4 for signal)
Waterproof Rating: IP65–IP67 (when mated with matching female socket)
Pre-attached Wires:
Length: Typically 200–500mm (varies by supplier)
Wire Type: PVC insulated, multi-strand copper
Power pins: 1.0–1.5mm² (16–18 AWG)
Signal pins: 0.5–0.75mm² (20–22 AWG)
Current Rating:
Power pins: Up to 10A
Signal pins: Up to 3A
Voltage Rating: Up to 250V AC / 12–48V DC
Contact Material: Copper alloy, tin/nickel plated for corrosion resistance
Housing Material: Durable thermoplastic, flame-retardant, high temperature resistant
Locking Mechanism: Snap-fit/clip lock for secure mating with female connector
Operating Temperature: -20°C to +85°C
Applications:
Automotive wiring harnesses
LED driver and lighting systems
Battery and power distribution
Industrial control panels
Outdoor electrical equipment
