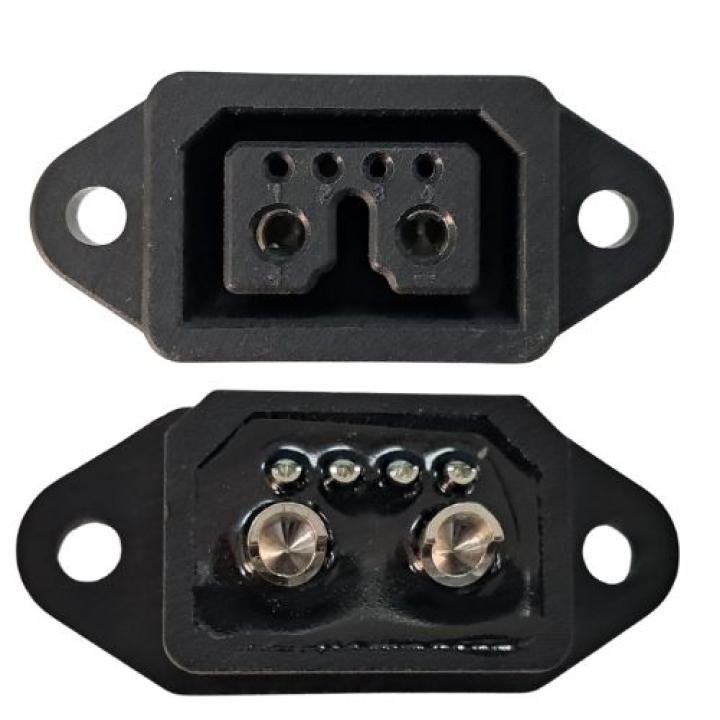

• Product Name: OKW 2+4 Pin Female CAN Socket (7e26)
• Connector Type: Female Socket
• Pin Configuration: 2 power pins + 4 signal pins (total 6 pins)
• Current Rating:
  • Power pins: up to 30–50A
  • Signal pins: 3–5A each
• Voltage Rating: Up to 600V DC (system dependent)
• Housing Material: Nylon/PVC, flame-retardant (UL 94-V0)
• Contact Material: Copper alloy, gold-plated for high conductivity and corrosion resistance
• Waterproof Rating: IP67 (dustproof and waterproof up to 1m immersion)
• Flame Rating: UL 94-V0 self-extinguishing material
• Shielding: Aluminum foil with drain wire for EMI/RFI protection
• Cable Compatibility:
  • Power pins: 9–12 AWG
  • Signal pins: 20–22 AWG
• Mechanical Features:
  • Auto-locking mechanism to prevent accidental disconnection
  • Shock- and vibration-resistant design
  • Resistant to heat, oil, and moisture
  • Long mating cycle durability

Applications

• Electric Vehicle battery and motor controller connections
• Battery Management Systems (BMS)
• CAN bus communication networks
• E-mobility platforms (e-bikes, scooters)
• Renewable energy storage systems (solar, wind)
• Industrial automation with integrated power + signal
