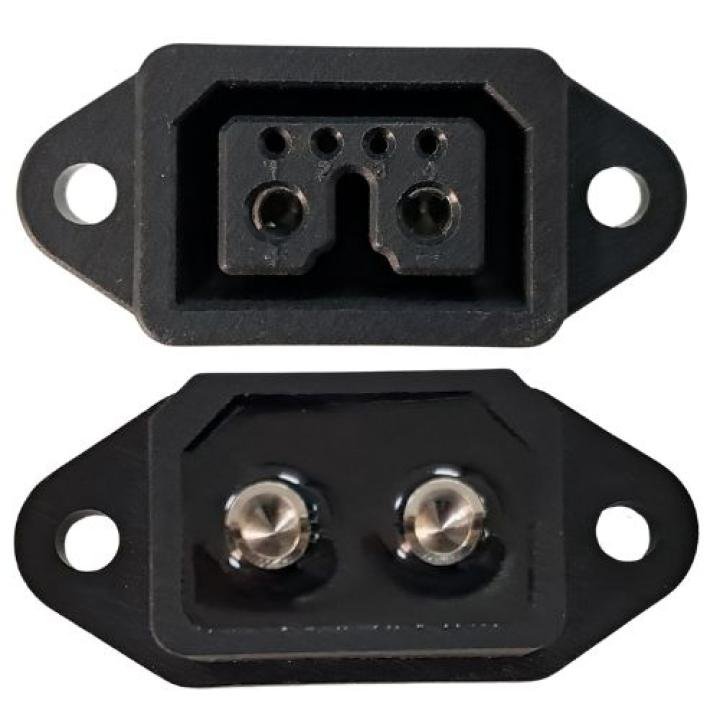

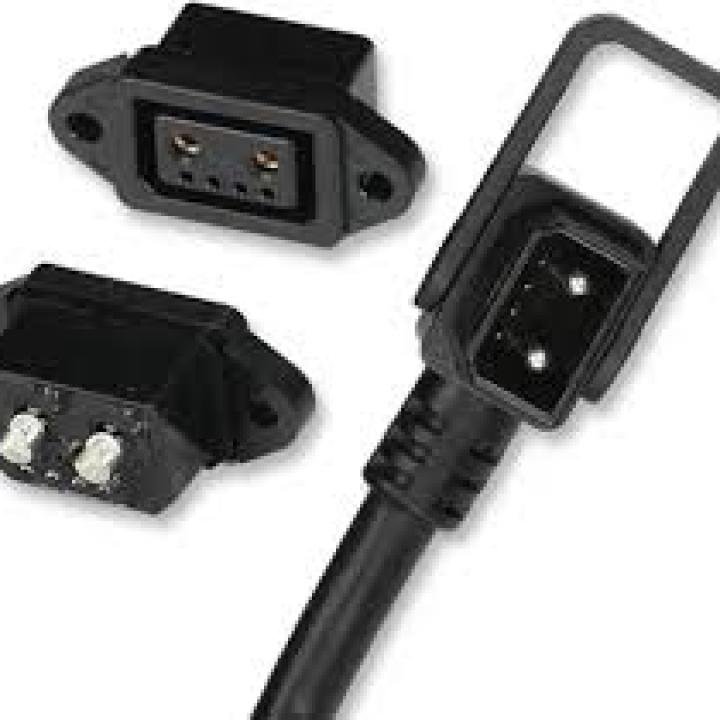

• Product Name: OKW 2 Pin Female Socket (454c)
• Connector Type: Female Socket (panel or cable mount)
• Pin Configuration: 2 pins (positive & negative)
• Current Rating: 20–32A (depending on application and cable size)
• Voltage Rating: Up to 300–600V DC (system dependent)
• Housing Material: Nylon/PVC, flame-retardant (UL 94-V0)
• Contact Material: Copper alloy, gold/nickel plated for high conductivity and corrosion resistance
• Waterproof Rating: IP65–IP67 (depending on variant, dustproof and splash/immersion resistant)
• Flame Rating: UL 94-V0 (self-extinguishing housing)
• Cable Compatibility: Supports 10–14 AWG cables (depending on current rating)
• Mechanical Features:
  • Secure locking mechanism to prevent accidental disconnection
  • Vibration- and shock-resistant design
  • Heat-, oil-, and moisture-resistant housing
  • Long mating cycle durability

Applications

• EV battery and charging connectors
• Battery Management Systems (BMS)
• E-bikes, e-scooters, and light electric mobility
• Renewable energy systems (solar, wind storage)
• Industrial power supply connectors
• Robotics and automation requiring compact 2-pin DC connections
