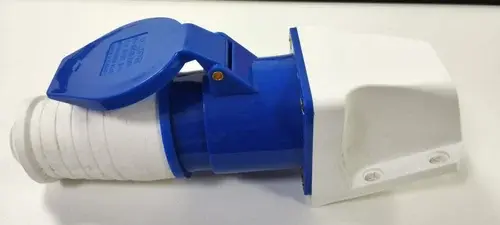

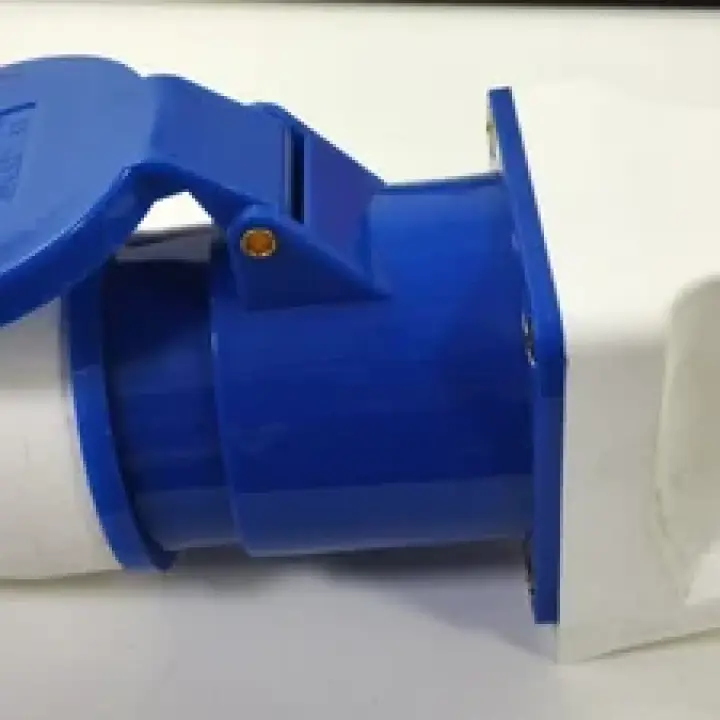

• Product Name: Battery Connector (083c)
• Rated Current: 32 Amps
• Rated Voltage: 380–440V AC (Three-phase)
• Pin Configuration: 3 Pole + Earth (3P + E, 4-wire)
• Standards Compliance: IEC 60309 (international standard for industrial connectors)
• Protection Rating: IP67 (dust-tight and waterproof up to 1m immersion)
• Cable Compatibility: Supports cable outer diameter ~17–23 mm (#12–#8 AWG range)
• Materials:
  • Housing: Flame-retardant engineering plastic (Valox® or equivalent)
  • Contacts: Nickel-plated brass
  • Seals/O-rings: Neoprene (oil- and moisture-resistant)
  • Hardware: Stainless steel/zinc-plated steel
• Features:
  • Shockproof and corrosion-resistant
  • Flame-retardant UL 94-V0 housing
  • Secure locking mechanism to prevent accidental disconnection
  • Suitable for harsh industrial and outdoor environments

Applications

• Electric vehicle battery packs & charging systems
• Solar and wind renewable energy setups
• Industrial machinery and power distribution
• Marine and outdoor applications requiring waterproof power transfer
